The Item Intervals query type allows you to query all intervals generated on the Analytics appliance within a given time-frame.

The following steps assume that you have previously created a panel and added the Beeks Analytics data source.

Complete the following fields:

  • API End Points: Select Item Intervals.

  • Stream Results: See Configuring query results section.

  • Flow: [Optional] Select a flow to filter the data by the flow.

  • Correlation ID: [Optional] Enter a Correlation ID to filter the data by Correlation ID. Supports variable values.

  • Query ID: [Optional] The ID of a canned query. See Canned queries section.

  • Interval: [Optional] Enter the ID of a canned query that was already created.

  • Minimum Interval: Enter a number in milliseconds and complete Maximum Interval field to return intervals with a time period between these 2 numbers.

  • Maximum Interval: Enter a number in milliseconds and complete Minimum Interval field to return intervals with a time period between these 2 numbers.

  • Complete: Select Yes to return only complete Items, select No to return only incomplete Items, select All to return all Items.

  • Raw / Formatted: [Optional] Select Raw to display raw data, or Formatted to display formatted data in the panel. Note that formatted numbers may contain commas and therefore will not be treated as numbers by Grafana.

  • Group By: [Optional] Select a column to group by that column.

  • Match All Properties and Alt IDs: If enabled, return only the Items for which the Properties and Alt IDs match. If disabled, return Items for which the Properties or Alt IDs match.

  • +Property: Add a new searchable property in the form [propertyname]=[value].

  • Match All Properties: If enabled, return all Items in which all Properties match. If disabled, return all Items in which any Properties match.

  • +Alt ID: Add a new searchable Alt ID.

  • Match all IDs: If enabled, return all Items in which all Alt IDs are present in the Item. If disabled, return all Items in which any Alt IDs are present in the Item.

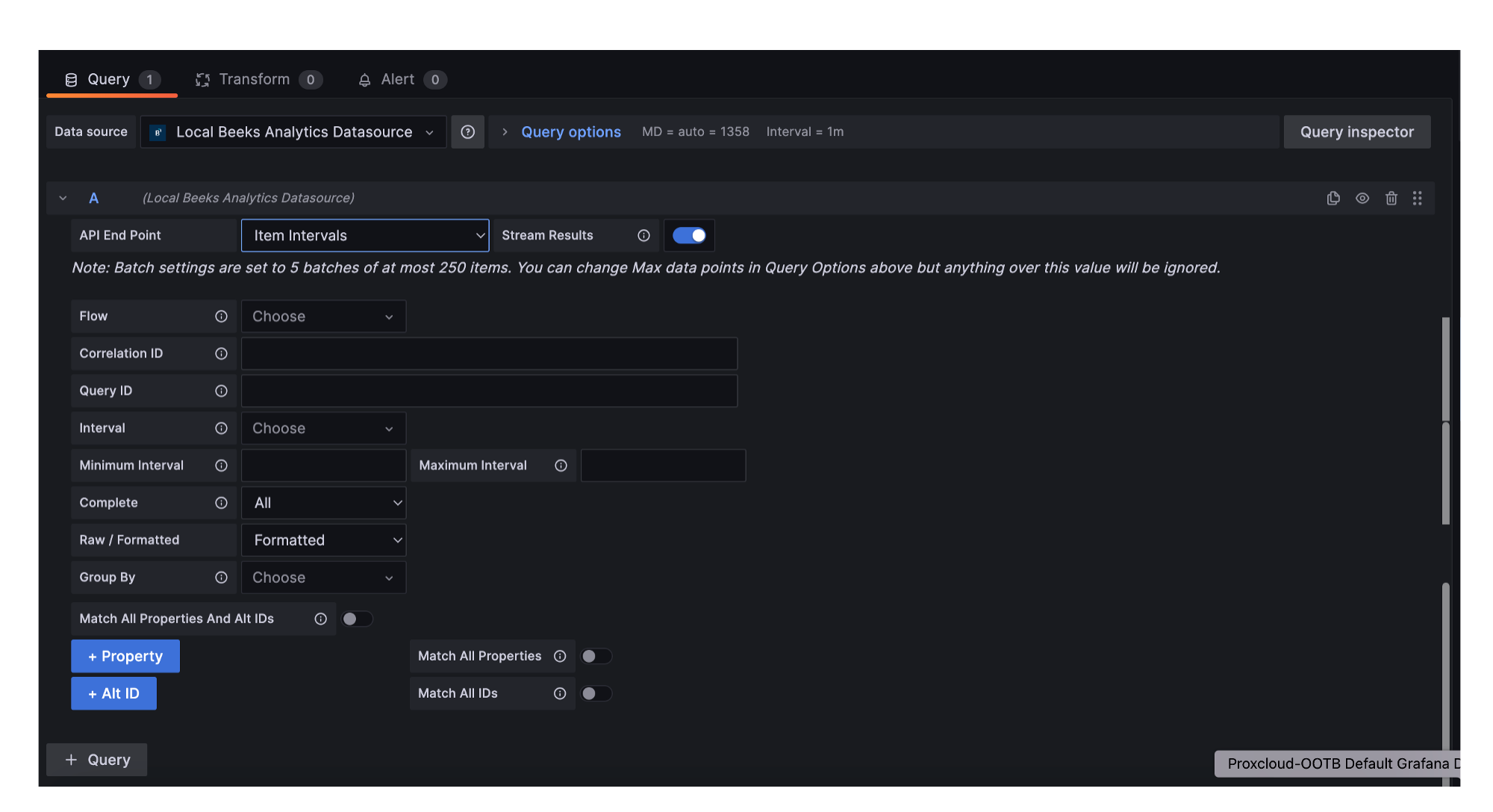

Screenshot: Configuration for querying the Intervals endpoint

See Using dashboard variables in queries for more information on variables.

The panel will refresh and display the intervals that correspond to the options you've selected. If you have used variables, any changes will trigger a re-run of the query with the new value.
