Purpose

This dashboard shows the TCP statistics by gateway.

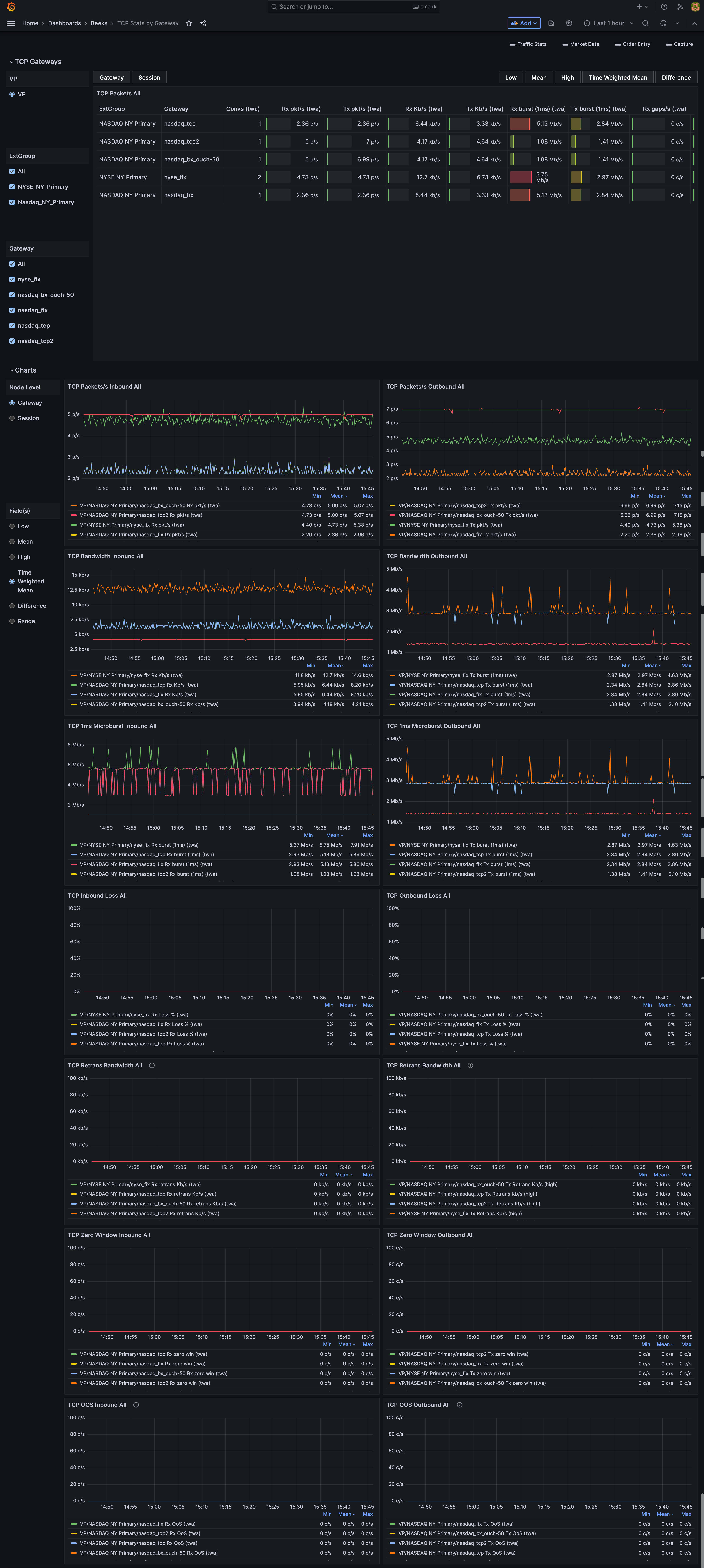

TCP Stats by Gateway dashboard

Usage instructions

Switch between Visibility Points and select the set of ExtGroups and Gateways to view.

In the visualisations panels, you can switch between Gateway and Session views.

You can also switch between Low, Mean, High, Time Weighted Mean, Difference, and Range to view different aspects of the data.

Panel overview

  • TCP Packets All

  • TCP Packets per second - Inbound All

  • TCP Packets per second - Outbound All

  • TCP Bandwidth - Inbound All

  • TCP Bandwidth - Outbound All

  • TCP 1ms Microburst - Inbound All

  • TCP 1ms Microburst - Outbound All

  • TCP Inbound Loss All

  • TCP Outbound Loss All

  • TCP Retrans Bandwidth - Inbound All

  • TCP Retrans Bandwidth - Outbound All

  • TCP Zero Window - Inbound All

  • TCP Zero Window - Outbound All

  • TCP OOS Inbound All

  • TCP OOS Outbound All
