Purpose

The Traffic Stats by ExtGrp-IntEnt dashboard shows the Traffic statistics by External Group-Internal Entity.

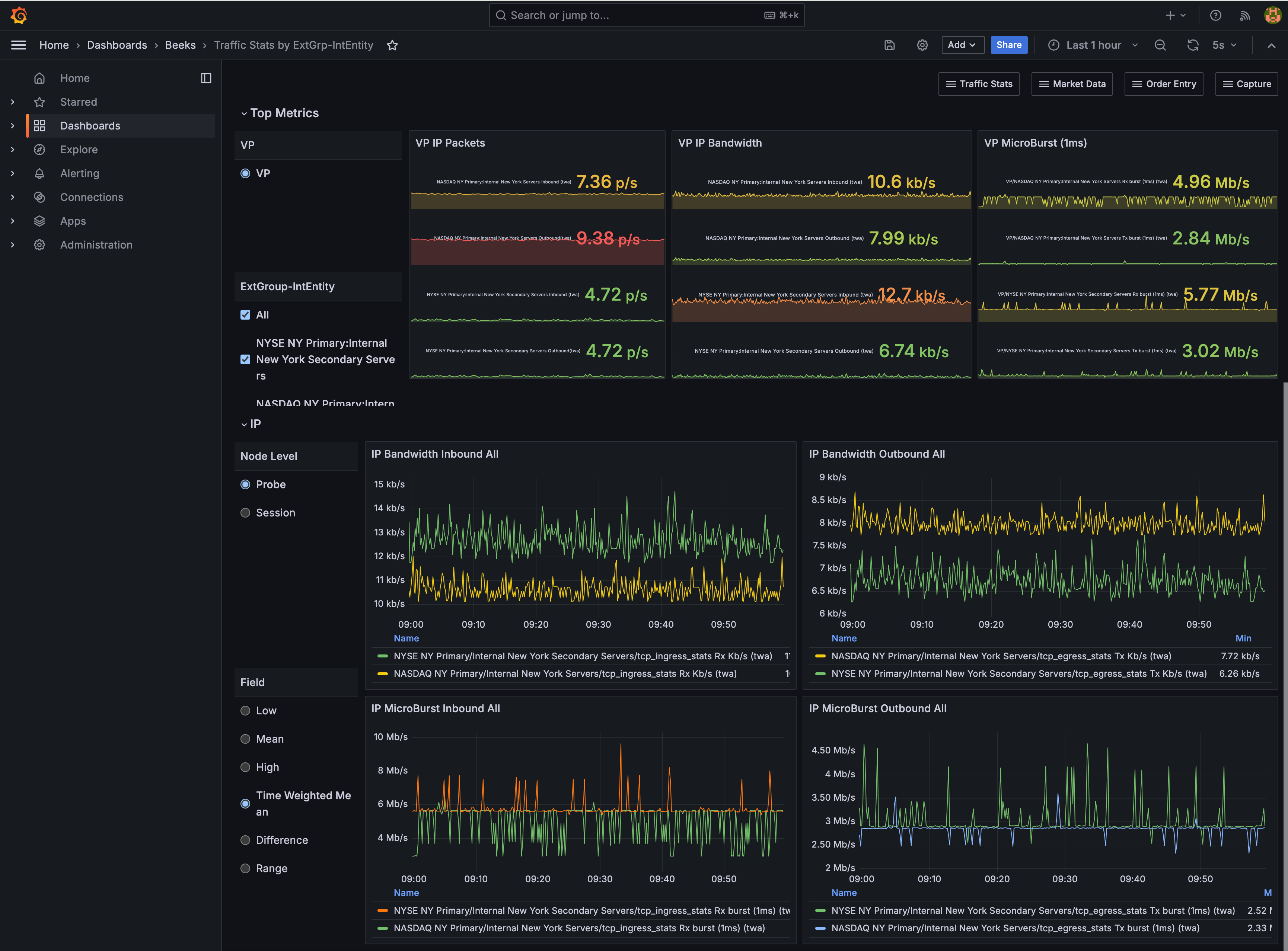

Traffic Stats by ExtGrp dashboard

Usage instructions

Switch between Visibility Points and select the set of ExtGroup - IntEntity’s to view.

In the visualisation panels, you can switch IP between Probe and Session views.

You can also switch between Low, Mean, High, Time Weighted Mean, Difference, and Range to view different aspects of the data.

Panel Overview

The Top Metrics panels are:

  • IP Packets All

  • TCP Packets All

  • Trading Messages All

  • UDP Packets All

  • Market Data Messages per second - All

  • IP Bandwidth Inbound All

  • IP Bandwidth Outbound All

  • IP MicroBurst Inbound All

  • IP MicroBurst Outbound All

The TCP panels are:

  • TCP Packets per second Inbound All

  • TCP Packets per second Outbound All

  • TCP External Loss All

  • TCP Internal Loss All

  • TCP RTT External All

  • TCP RTT Internal All

  • TCP OOS Inbound All

  • TCP OOO Outbound All

The UDP panels are:

  • UDP Moving Average Packets per second Inbound All

  • UDP Bandwidth Inbound All

The Trading panels are:

  • Trading Inbound Moving Average Latency All

  • Trading Outbound Moving Average Latency All

  • Trading Inbound Flow All

  • Trading Outbound Flow All

The Market Data (MD) panels are:

  • Market Data Wiretime Inbound All

  • Market Data Messages per second Inbound All

  • Market Data Gaps Inbound All

  • Market Data 1ms Burst Rate Bandwidth Inbound All
