To understand how to develop the Advanced Configurable Decoder or a decoder from scratch using the Decoder Software Development Kit, it is important to understand the basic functionality of a stack probe within the overall VMX-Capture architecture.

For more detailed background on the VMX-Capture architecture, and on VMX-Capture configuration, please see the Configuration Guide for VMX-Capture.

Stack probes are probes that run decodes of packets. They contain a series of modules that form the decoder stack. They can also transform the data, and publish it as derived statistics from the data that is decoded or as individual messages.

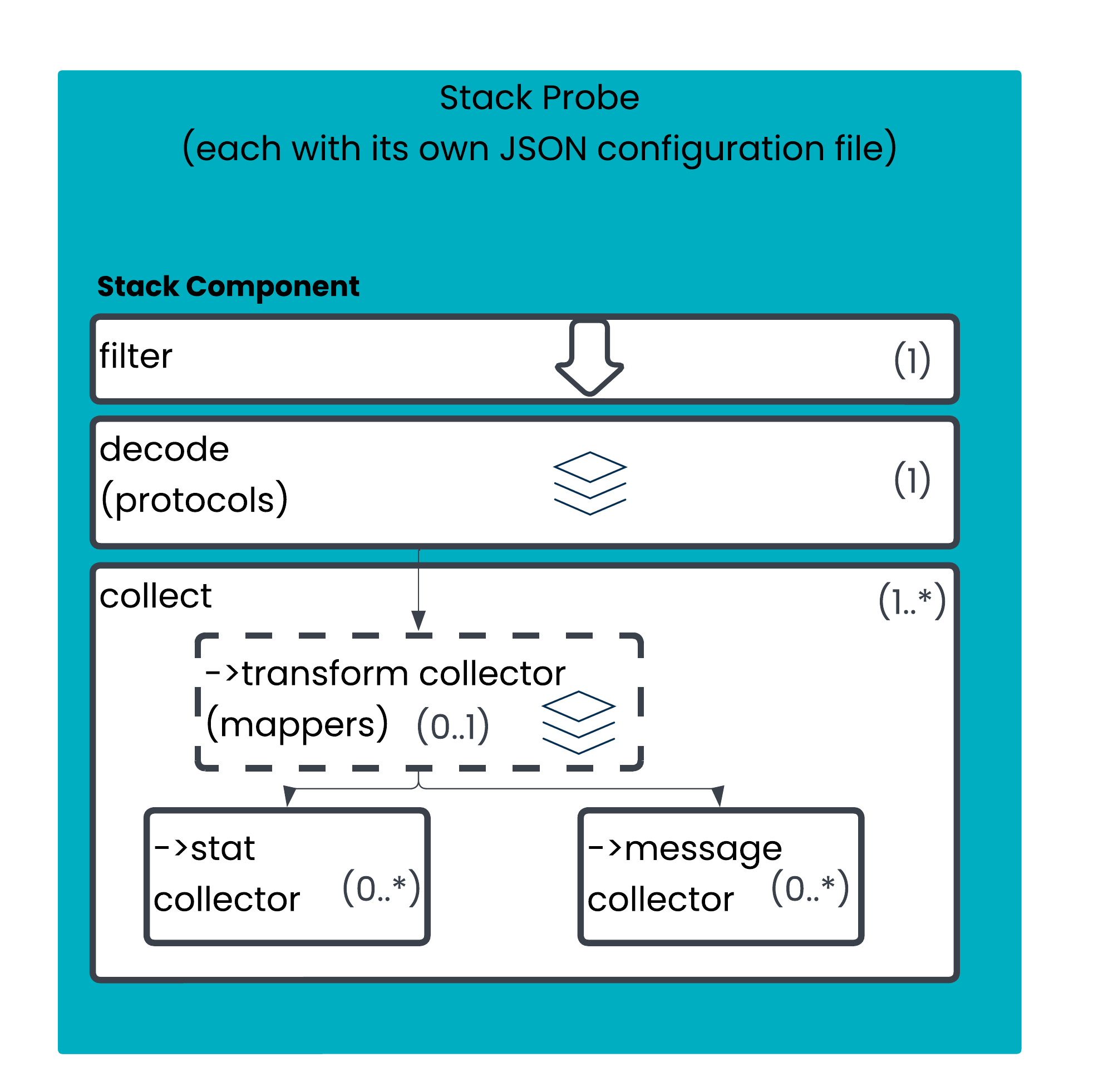

The diagram below provides an overview of how packets pass through the stack probe and are processed.

The ‘stack’ icon for the decode and mappers section shows that these parts of the configuration are stacked. The stack operates similar to the OSI network stack - the lower levels of the stack process data, and they progressively ‘unwrap’ the packet (in the case of the protocol layer).

Each Stack Probe will always have a filter and a decode/protocols section (the configuration labels this ‘protocols’, for clarity when learning about the configuration we use the more specifically understood term ‘decode’).

Each Stack Probe will need to provide its output somewhere. In most cases this is performed via one or more Collectors. There are two types of collector - stats collectors and message collectors. You can have multiple statistic or message collectors within the same stack probe, but these are not layered; they all take the same input.

There are some niche cases where a Collector is not required by a stack probe. For example, there is a capture protocol module that will produce write PCAP files, or transcoding protocol modules that can output information via the Napatech card (e.g. for the mdPlay use case).

Stack Layers

Packet Filtering and Decoding

The very first thing a stack does is Filter the packets it sees from the PMUX using a BPF (Berkeley Packet Filter) or similar packet filter. Beeks have developed an alternative filter protocol for cases where BPF syntax is not sufficient to define the traffic of interest, or to simplify cases where the BPF syntax is overly complex.

Then the stack decodes the packet according to the set of protocols defined in the decoding layer. If the message does not decode using the defined stack, then an error is thrown and the processing of that packet ends.

Data Transformation

Transformation is done via Mappers. A mapper defines a fixed set of rules containing conditional statements for transforming the data. If the payload of the data matches the condition, then the associated transformation will occur, such as:

  • data enrichment (adding fields)

  • data update (editing fields)

  • mapping of values (a translation table)

  • simple arithmetic (performing subtraction on timestamps to compute wiretime)

Metrics Aggregation

Stat Collectors are designed to compute metrics depending on a predefined set of aggregations and statistics. For example, a wiretime field might have been calculated in the transformation layer, you can then use a Stat Collector to compute percentiles on the value of the wiretime field. These statistics can then be aggregated and passed to VMX-Analysis, or output via the Core Data Feed (typically a Stat Collector would output via the CDF-T).

Message Publishing

The Message Collector is used to define an output of the processed data, once the data has been transformed it will be sent to a specified output:

  • Agent events will be sent to VMX-Analysis using vmxconnector

  • Other example outputs include text output, the P3 process, or the Core Data Feed (typically a Message Collector would output via the CDF-M).

For more details on the Core Data Feed, and CDF-T and CDF-M in particular, see the Core Data Feed Guide for more detail.
