Appendix: Collector Configuration

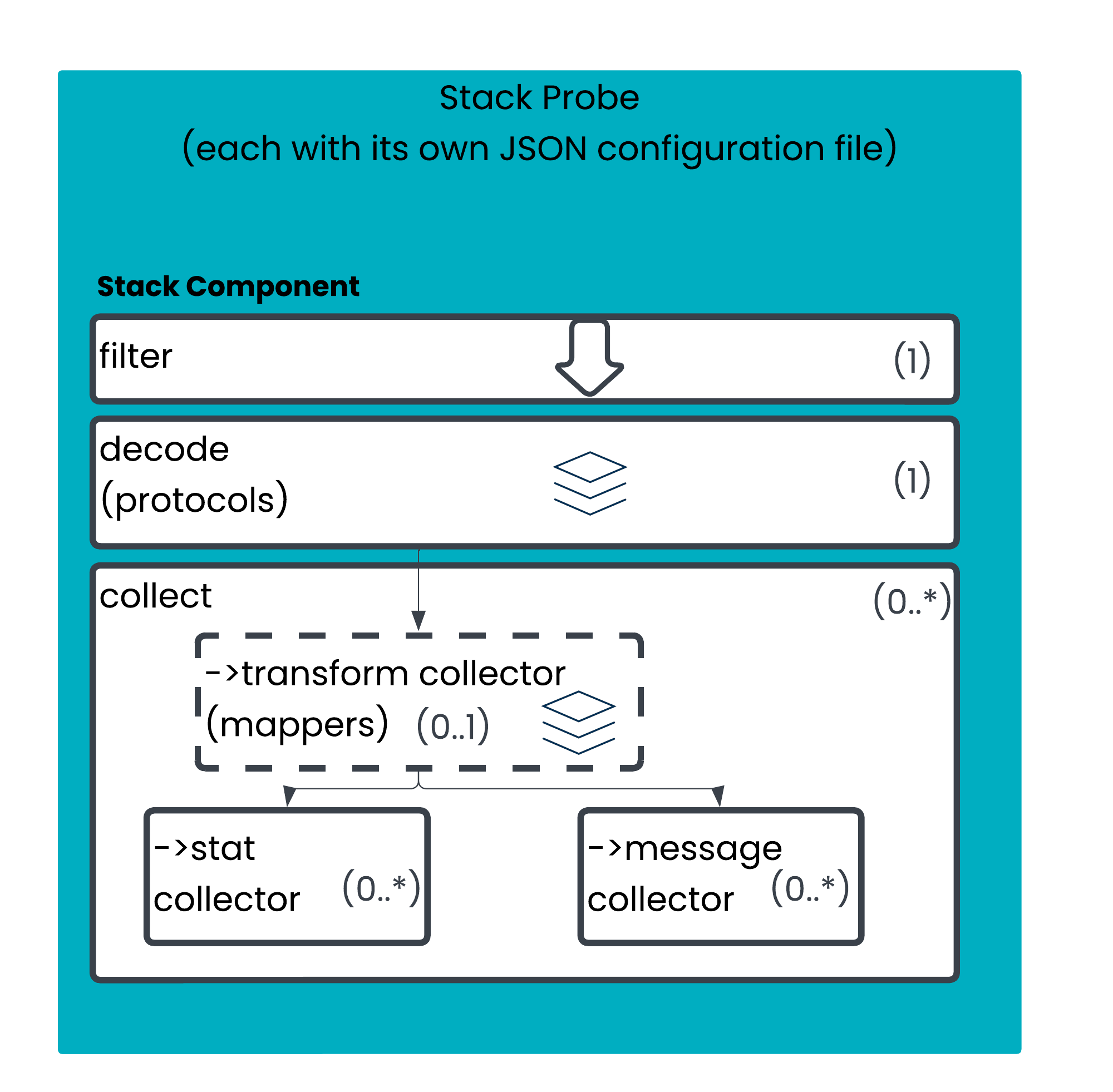

We introduced stat collectors section earlier in this document in Stack Probe: Metrics Aggregation using Stat Collectors .
We introduced message collectors earlier in this document in Stack Probe: Message Publishing using Message Collectors .
In this appendix, we list the most common collectors that are used in VMX-Capture configuration, and provide details of where to find more information about them.
Collector Name | Collector Type | Description | Further Information |
|---|---|---|---|
summary_dumper | Stats | Outputs aggregators as JSON or as TCP. Useful for diagnostics or as standalone configuration. | n/a |
protocol_dumper | Stats | Outputs a summary of the protocols seen by the stack probe. | n/a |
capture | Message | As per the summary_dumper, except rather than producing stats this one writes the message decoder as JSON or output format. | n/a |
json_tcp | Stats | CDF-T stats (JSON format) | Core Data Feed Guide |
kafka | Stats | CDF-T stats (publish via Kafka) | Core Data Feed Guide |
msg_influxdb | Message | CDF-M messages (write directly to timeseries DB) | Core Data Feed Guide |
msg_json_tcp | Message | CDF-M messages (JSON format) | Core Data Feed Guide |
msg_kafka | Message | CDF-M messages (publish via Kafka) | Core Data Feed Guide |
platency3 | n/a | P3 process | |
vmxconnector | Message | Publish Agent Events to VMX-Analysis | |
vmxgenericaggregatorinputeventconnector | Stats | Publish aggregated statistics to VMX-Analysis | Worked Example: Market Data Gap Detection in Beeks Analytics for Markets (BAM) |
vmxanomalyconnector | n/a | Publish anomalies to VMX-Analysis | Worked Example: Market Data Gap Detection in Beeks Analytics for Markets (BAM) |
